                                                          HF  Antennas

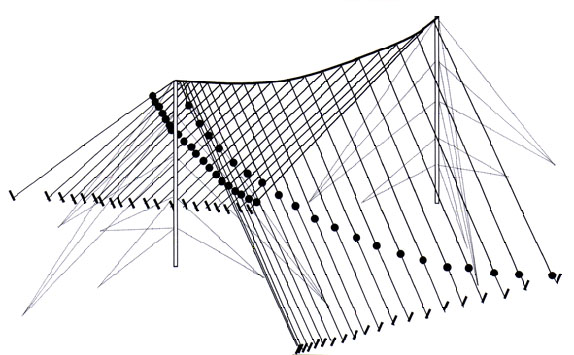

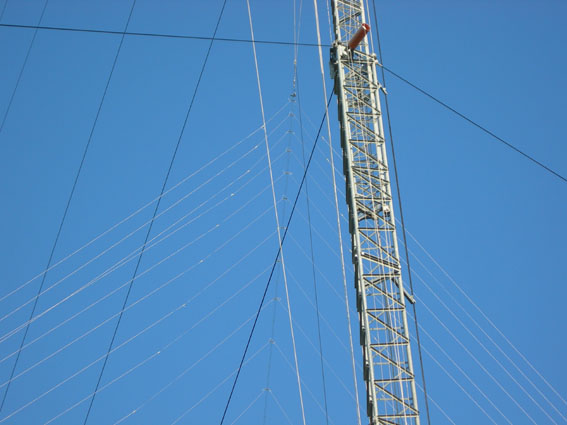

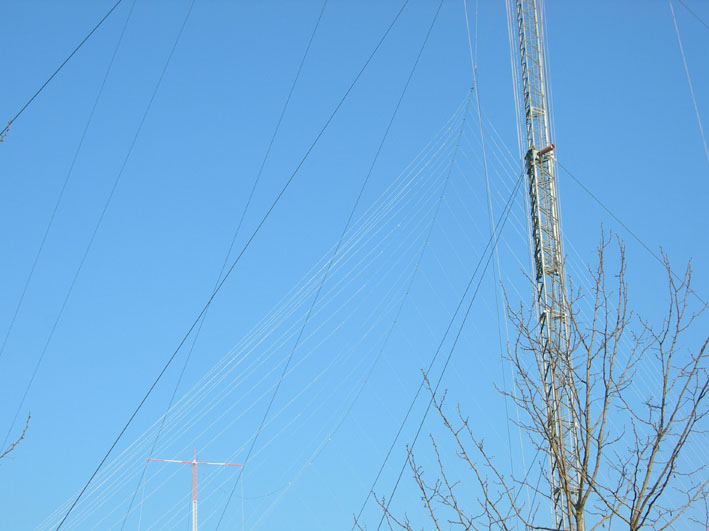

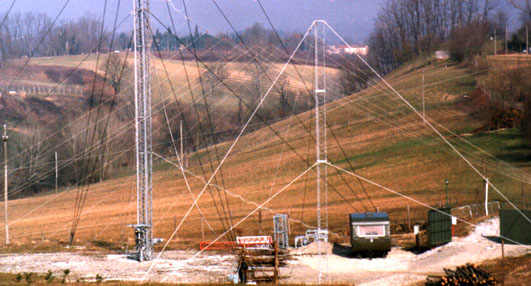

 Fixed Directional Wire Log Periodic Antennas















HF wire log periodic antennas suitable for operation covering medium to long distances.





Used for the transmission and reception of vertically polarized signals.













Wire log periodic HF antennas  ,  Series 1530





Frequency range: 1.5 - 30 MHz







Mod. LP 1530-W/2            2 KW          HF log-periodic broad-band antenna



Mod. LP 1530-W/10          10 KW        HF log-periodic broad-band antenna





    More info ....















 Wire log periodic HF antennas , Series 0330





Frequency range: 4 - 30 MHz









Mod. LP 0330-W/2             2 KW          HF log periodic broadband antenna



Mod. LP 0330-W/10           10 KW        HF log periodic broadband antenna



Mod. LP 0330-W/R             receiving    HF log periodic broadband antenna







                                                                  More info ....













 Wire log periodic HF antennas , Series 630





Frequency range: 6.5 - 30 MHz







Mod. LP 630-W/2             2 KW          HF log-periodic broad band antenna



Mod. LP 630-W/10           10 KW        HF log-periodic broadband antenna





                                                               More info ....












                                                                                                                                                                                                                                       I5JVA HOME PAGE              I5JVA antenna farm YouTube video

  Giovannini Elettromeccanica "Antenna Systems" Via Enrico Mattei 9  50039 Vicchio ( Florence ) Italy     Phone: +39 3487804537         e-mail


Copyright©Giovannini Elettromeccanica - 2012



1.5 MHz to 30 MHz For radiomonitoring over short, medium and global distances with extremely high sensitivity The wire log periodic is suitable for the reception of horizontally polarized waves and allows even very weak signals to be detected. The vertical pattern is shaped taking into account the transmission characteristics in the ionosphere. In conjunction with the extremely wide frequency range from 1.5 MHz to 30 MHz, the antenna thus allows reception over short, medium and global distances. The half-power beamwidth of the horizontal radiation pattern of about 70° can be enhanced up to 360° by adding five further antennas. For the reception of vertically polarized waves, the antenna can be combined with the Log-Periodic HF Antenna R&S®HL210A3.
