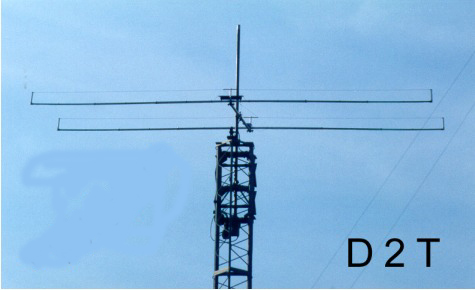

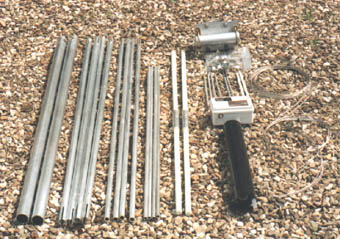

  Mod. D2T , HF/VHF Broad Band Directional Antenna, 1.5 to 30 Mhz , 1 Kw PeP











Mod. D2T 1.5 to 200 MHz





Download D2T documents:



D2T                                specificatios



D2T  CQ            USA      Review

D2T  RSGB       UK         Review

D2T  R&K          IT           Review

D2T  EF             IT           Review

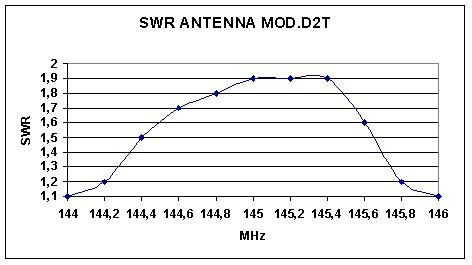

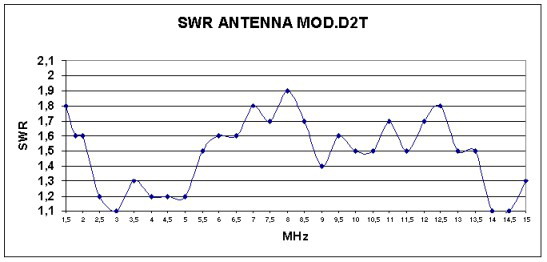

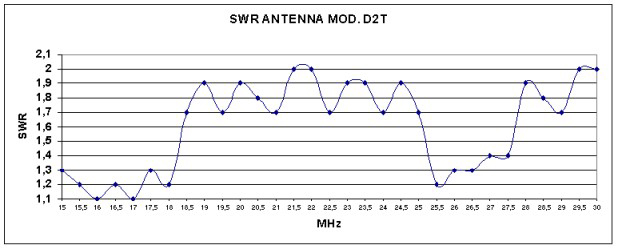

SWR 1.5 - 15 MHz             SWR 15 - 30 MHz

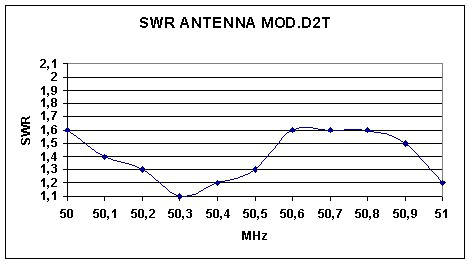

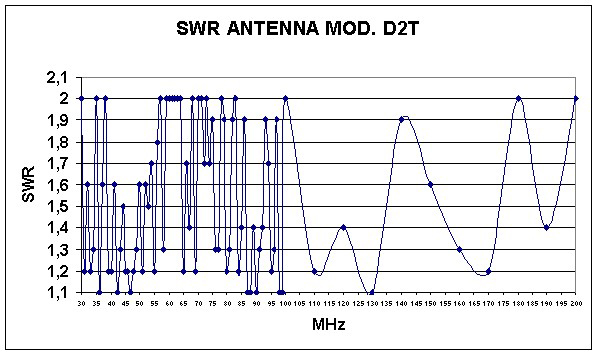

SWR 30 - 200 MHz            SWR 50 MHz

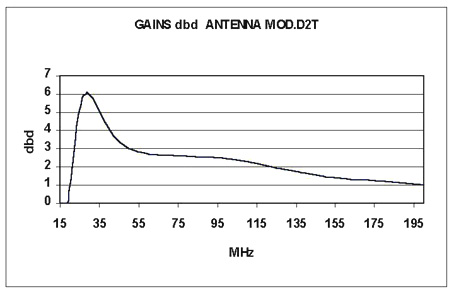

SWR 140 MHz               Yield              Gain

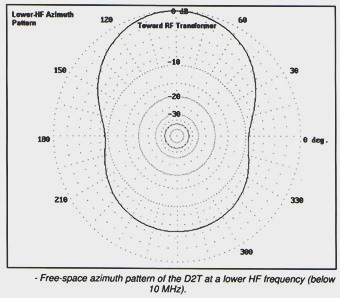

Lobe Az. 10 MHz           Lobe Az. 25 MHz

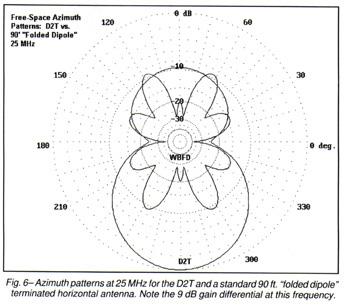

Lobe Az. 140 MHz         Lobe D2T Vs. T2FD

Image1                    Image2                   Image3

Image4                    Image5                   Image6





REVOLUTIONARY DESIGN - SMALL SIZE - IDEAL FOR RESTRICTED SPACES



  • 1.5 - 200MHz CONTINUOUS COVERAGE

  • NO TUNING REQUIRED

  • USES ONLY ONE 50 OHM COAXIAL CABLE

  • BOOM: 2m (6.6ft)

  • ELEMENTS: 6m (19.8ft)

  • WEIGHT: 6kg (13lb)





DESCRIPTION:

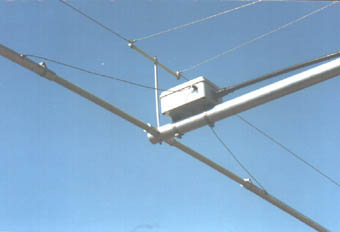

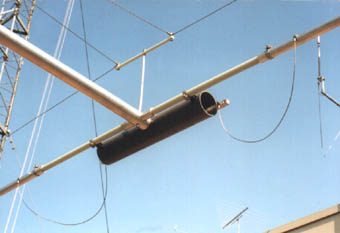

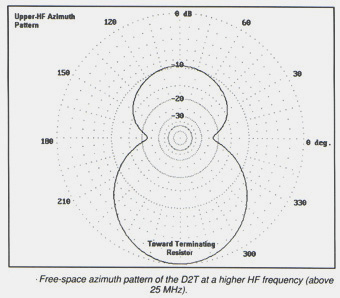

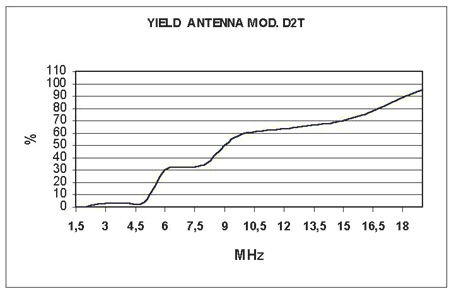

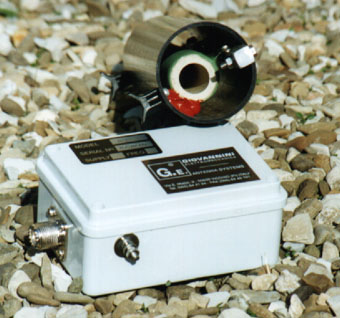

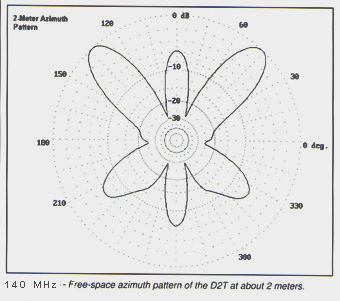

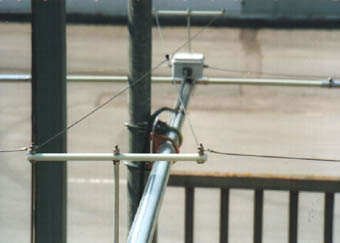

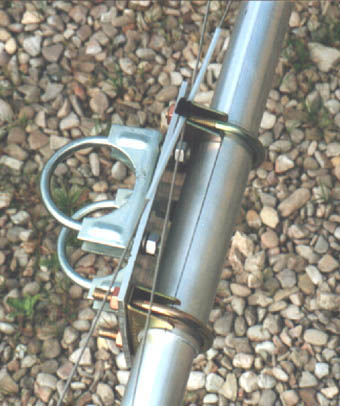

The D2T is a non-resonant high-impedence antenna, composed of two folded dipoles dephased by 180°. It has a non-inductive terminating resistor and broadband RF transformer fed with a single 50 Ohm cable. The D2T is bi-directional starting from about 10MHz with 10dB F/S. At 21MHz it gains 3dB with 5dB F/B and 10dB F/S, and progressively it reaches 6dB at 30MHz with 5dB F/B and 20dB F/S. At VHF it shows a daisy-type radiation lobe. Up to about 15MHz both the transmitted and received signals are attenuated (see the ‘Yield’ graph).
